Vibration Motor

Vibration Motor
Vibration Motor
Product Code : VM-24
Brand Name : GUJARAT MAGNET
Product Description

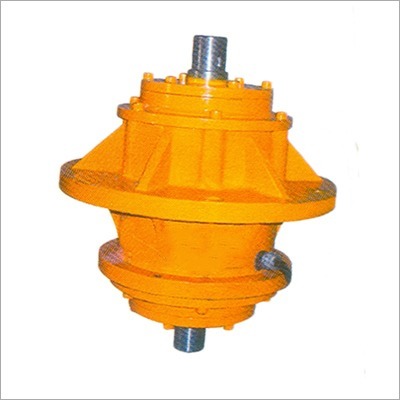

Unbalance vibratory motor with special tough design is us as drive for the vibrating machines. The applications are feeding, screening, discharging etc. The vibration motors are available in 2800, 1440 960 and 750 RPM. The special features includes sturdy frame with stiffing ribs, Body casted with high grade ductile iron, Extra large dia. of shaft to resist bending under high centrifugal force, fitted with heavy duty cylindrical roller bearings , specially varnished winding with terminal box to withstand tough operating conditions . Specially designed electrical parameters for cool operation conditions. Vibration motors are available from 0.25 HP to 7.5 HP in foot mounted design or flange mounted type. Vibration motors are widely used in Process plants, Glass, Food, Metal, Coal power plant, Chemical, Ceramic, Iron and steel, Foundries, Packaging Industries etc .

GENERAL :
Unbalance motors are asynchronous AC Motors with pairs of centrifugal weights fitted to the ends of the motor shafts. The size of the unbalance and with it the amplitude of the oscillation by the working unit can be adjusted by shifting the centrifugal weights when the motor is at a standstill.
The unbalance motors are also available in a special version for mains voltages up to 690V and for a mains frequency ranging from 50 Hz to 60 Hz.

Technical Data

  • Centrifugal force range of the type series : 0-9000 Kgs/Meter
  • Operating Voltages : Standard version 380/440 V, 50/60 Hz, others on request.
  • Ambient temperature : 25oC to 50oC, different temperature ranges on request.
  • Insulation Class : F
  • Operation : Continuous Service at the maximum indicated centrifugal force and Electric Power rating.
  • Fixing : The Electric vibration can be fixed in all positions with no limitations.
  • Terminal Box : Sized to make the electrical connections easier.
  • Bearings : The lower and upper bearings have been designed to support the relative load.
  • Drive Shaft : Oversized, made of treated steel and able to withstand high stress.

Dimensional Details for the Flange Mounted / Foot Mounted Heavy Duty Vibration Motor

Model

Power Input Kw

A

B

Mounting Hole Dia. X Nos. of Holes.

Max. Centrif. Force Kgs

JK-FVB-01

0.25

80

83

12.5 mm x 4 nos.

350

JK-FVB-02

0.50

120

85

15 mm x 4 nos

750

JK-FVB-03

0.75

130

100

15 mm x 4 nos

1400

JK-FVB-04

1.00

150

135

17 mm x 4 nos

1800

JK-FVB-05

1.50

180

170

17 mm x 6 nos

2700

JK-FVB-06

2.00

180

170

21 mm x 6 nos

3500

JK-FVB-07

3.00

175

180

25 mm x 6 nos

4500

JK-FVB-08

5.00

175

180

25 mm x 6 nos

5500

JK-FVB-09

7.50

300

335

27 mm x 6 nos

9000


Model

Power Input Hp

PCD

Mounting Hole Dia.
X Nos. Of Holes.

JK-FVB-01

0.25

175

14 mm x 6 nos.

JK-FVB-02

0.50

225

14 mm x 6 nos

JK-FVB-03

1.00

225

15 mm x 6 nos

JK-FVB-04

1.50

285

22 mm x 6 nos

JK-FVB-05

2.00

285

22 mm x 6 nos

JK-FVB-06

3.00

285

22 mm x 6 nos

JK-FVB-07

5.00

360

27 mm x 6 nos

JK-FVB-07

7.00

360

27 mm x 6 nos

Centrifugal Force Value At 50hz.
All Dimensions are mm.
